Some Observations

• The received signal looks considerably different than the transmitted signal.
• The additive noise makes it difficult to recognize the waveform of the transmitted signal.
• Good news: We don't need to recover the transmitted waveform.
• It is sufficient to determine if a positive or negative pulse was transmitted in each bit period.

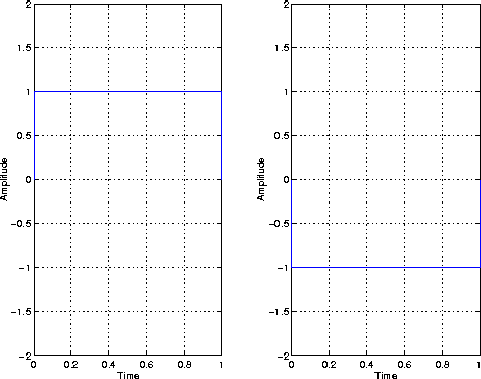

Figure 2.31: In each bit period only one of theses signals can be transmitted.
