- An analog signal is a signal with an amplitude that varies
continuous for all time.
- In other words, a given time instant an analog signal can take on any
value.
- Analog signal arise when a physical waveform is converted into an
electrical signal.
- Example: The pressure wave from a sound is converted into an
electrical signal by a microphone.
- A device that converts a physical waveform into an electrical signal is
often called a transducer.

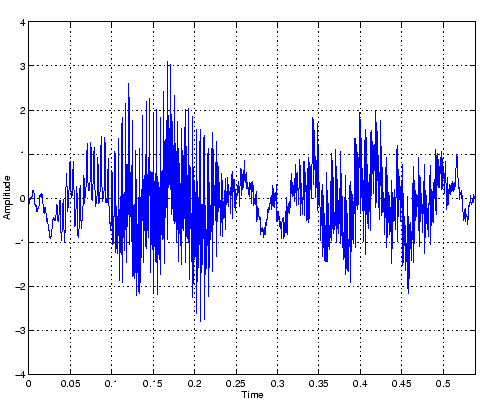

Figure 2.7:
Analog signal from recording the word "MATLAB"
|
