Implementation of FIR Filters

1.

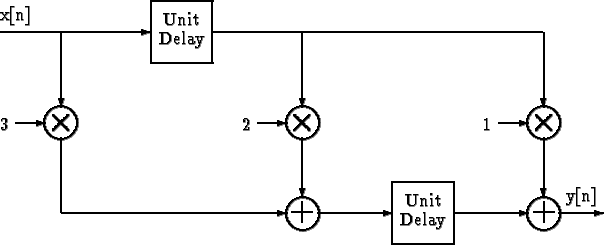

Determine the input-output relationship for the FIR filter in the following block-diagram.

$\begin{picture}(6024,2269)(289,-3818) \setlength{\unitlength}{0.00083300in} % \t... ...3407,-3648){\line(-1, 0){212}} \put(3301,-3542){\line( 0,-1){212}} \end{picture}$

2.

What is the impulse response of this filter?

3.

Compute the output y[n] of the above filter if the input is $x[n]=\{2,0,4,0,2\}$ . Sketch both the input and the output signal.

4.

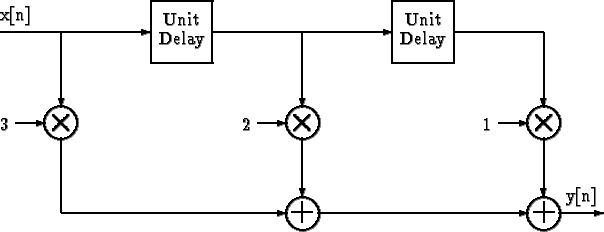

Determine the input-output relationship for the FIR filter in the following block-diagram.

$\begin{picture}(6024,2269)(289,-3818) \setlength{\unitlength}{0.00083300in} % \t... ...3407,-3648){\line(-1, 0){212}} \put(3301,-3542){\line( 0,-1){212}} \end{picture}$
