- 1.

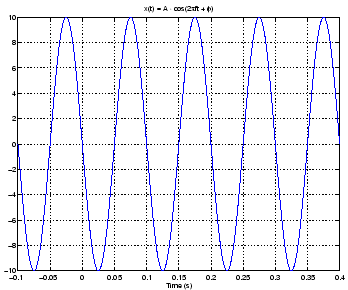

- What are the amplitude, frequency, and phase of the sinusoid
in the
diagram below.
Amplitude (A) |
Frequency (f) |
Phase ( ) |
|
|
|
![\includegraphics[width=0.6\textwidth]{/usr/people/pparis/courses/ece201/P14.eps}](img95.gif)
- 2.

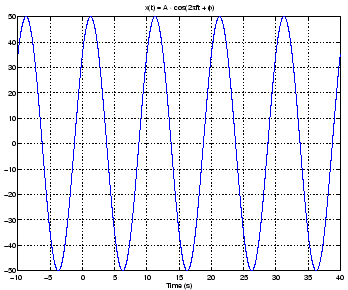

- What are the amplitude, frequency, and phase of the sinusoid
in the
diagram below.
Amplitude (A) |
Frequency (f) |
Phase ( ) |
|
|
|
![\includegraphics[width=0.6\textwidth]{/usr/people/pparis/courses/ece201/P14_a.eps}](img98.gif)
- 3.

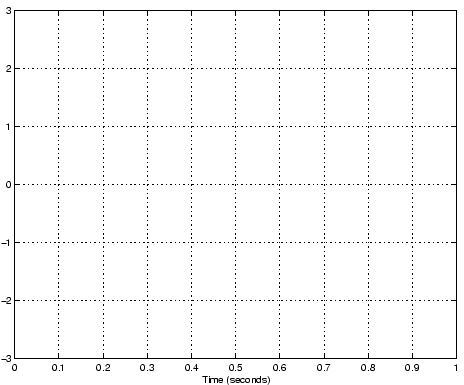

- Plot a the signal
in the diagram below.
