Sinusoids

1.

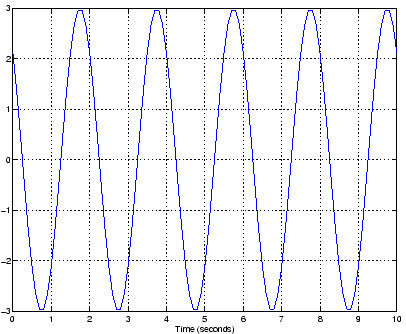

What are the amplitude, frequency, and phase of the sinusoid in the diagram below.
\includegraphics[width=0.7\textwidth]{/usr/people/pparis/courses/ece201/P1.eps}
2.

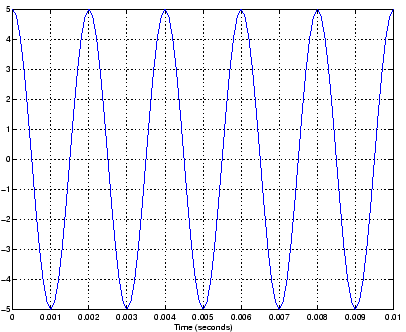

What are the amplitude, frequency, and phase of the sinusoid in the diagram below.
\includegraphics[width=0.7\textwidth]{/usr/people/pparis/courses/ece201/P1_a.eps}

3.

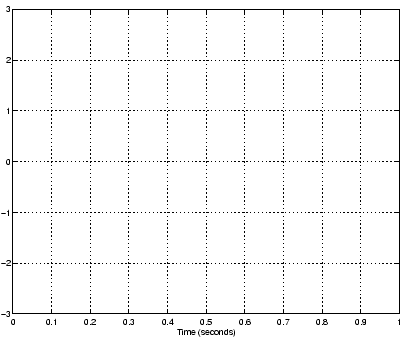

Plot a the signal $x(t)=2\cos(2\pi 5t+\frac{\pi}{2})$ in the diagram below.
\includegraphics[width=0.7\textwidth]{/usr/people/pparis/courses/ece201/P1_b.eps}
